> EATON - MOELLER > Disconnectors and Cam Switches > 029791

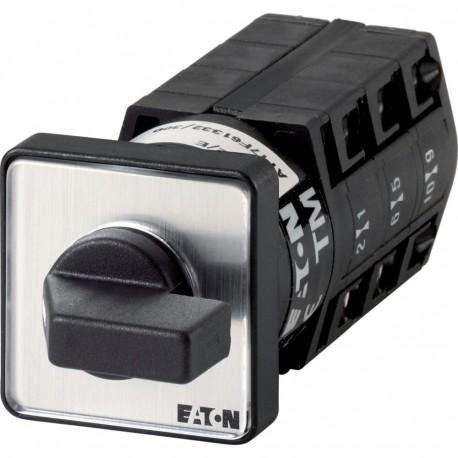

EATON - MOELLER TM-3-15433/E TM-3-15433/E 029791 Y7-29791 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: HAND-0-AUTO,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-3-15433/E 029791 Y7-29791 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: HAND-0-AUTO,..

TM-3-15433/E

029791

Y7-29791

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 10 A, front plate: HAND-0-AUTO, 60 °, maintained, flush mounting Switch 6-pole switch 10 A Indicator plate: HAND-0-AUTO 60 Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15433 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: HAND-0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
029791
Model Code
TM-3-15433/E
EAN
4015080297918
Product Length/Depth
86 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.049 kg
Certifications
CE
UL 508
UL report applies to both US and Canada
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
UL File No.: E36332
UL
CSA
IEC/EN 60947-5-1
CSA-C22.2 No. 94
CSA-C22.2 No. 14-05
UL Category Control No.: NLRV
Certified by UL for use in Canada

ETIM for 029791 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Reverser
Number of poles (EF001391) 3
Max. rated operation voltage Ue AC (EF007355) 500 V
Rated permanent current Iu (EF001389) 10 A
Number of switch positions (EF000231) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
