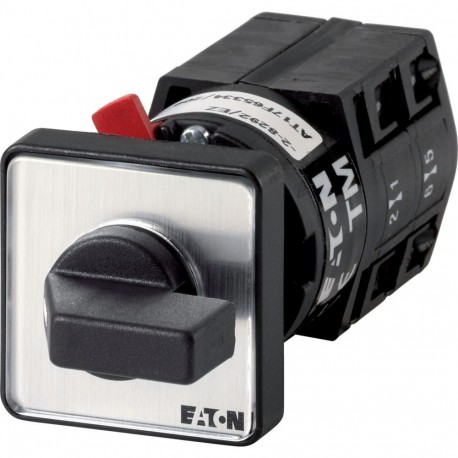

EATON - MOELLER TM-2-8551/EZ TM-2-8551/EZ 045489 Y7-45489 EATON ELECTRIC Coding switches, Contacts: 4, 10 A, Binary BCD code 0-9, front p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8551/EZ 045489 Y7-45489 EATON ELECTRIC Coding switches, Contacts: 4, 10 A, Binary BCD code 0-9, front p..

TM-2-8551/EZ

045489

Y7-45489

EATON - MOELLER

1 Pcs.

Coding switches, Contacts: 4, 10 A, Binary BCD code 0-9, front plate: 0-9, 30 °, maintained, centre mounting Switch Encoder 4 Pole 10 A Binary Code BCD 0-9 Board Eaton Moeller® series TM Coding switches, TM, 10 A, centre mounting, 2 contact unit(s), Contacts: 4, 30 °, maintained, With 0 (Off) position, 0-9, Design number 8551 Coding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, switching function: Binary BCD code 0-9, Switching angle: 30 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-9

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A TM-2-8551/EZ Eaton Moeller coding switch is a specialized rotary component implemented in control systems to input binary data or select numerical parameters manually. These compact built-in devices are frequently installed in control panels where precise configuration settings or address selections are required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Coding switch
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 10
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
045489
Model Code
TM-2-8551/EZ
EAN
4015080454892
Product Length/Depth
87 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.044 kg
Certifications
IEC/EN 60947-3
Certified by UL for use in Canada
UL
CE
CSA
CSA-C22.2 No. 94
UL 508
IEC/EN 60947
UL Category Control No.: NLRV
UL File No.: E36332
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
IEC/EN 60947-5-1
VDE 0660
