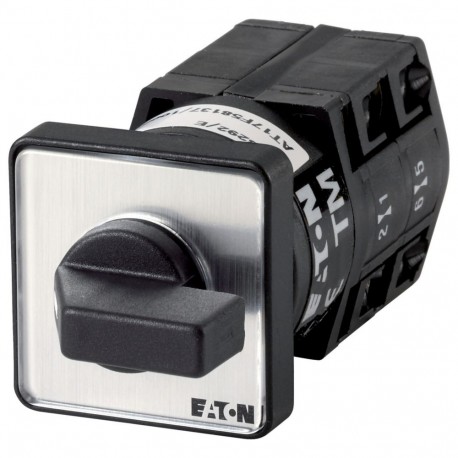

EATON - MOELLER TM-2-8551/E TM-2-8551/E 022673 Y7-22673 EATON ELECTRIC Coding switches, Contacts: 4, 10 A, Binary BCD code 0-9, front pl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8551/E 022673 Y7-22673 EATON ELECTRIC Coding switches, Contacts: 4, 10 A, Binary BCD code 0-9, front pl..

TM-2-8551/E

022673

Y7-22673

EATON - MOELLER

1 Pcs.

Coding switches, Contacts: 4, 10 A, Binary BCD code 0-9, front plate: 0-9, 30 °, maintained, flush mounting Switch Encoder 4 Pole 10 A Binary Code BCD 0-9 Board Eaton Moeller® series TM Coding switches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 30 °, maintained, With 0 (Off) position, 0-9, Design number 8551 Coding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, switching function: Binary BCD code 0-9, Switching angle: 30 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-9

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Coding switches such as the Eaton Moeller TM-2-8551/E convert manual rotary inputs into standardized digital signal formats for control electronics. Engineers install panel-mounted coding devices to set parameters, addresses, or operating modes on programmable controllers and drives.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Coding switch
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 10
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
022673
Model Code
TM-2-8551/E
EAN
4015080226734
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
IEC/EN 60947
VDE 0660
UL Category Control No.: NLRV
UL report applies to both US and Canada
CSA-C22.2 No. 94
IEC/EN 60947-3
UL 508
Certified by UL for use in Canada
CE
CSA-C22.2 No. 14-05
CSA
UL File No.: E36332
IEC/EN 60947-5-1
UL
