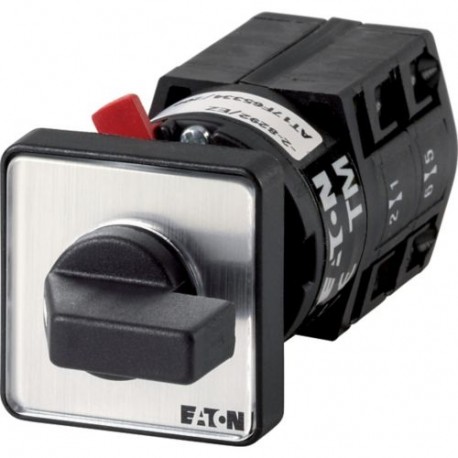

TM-2-8221/EZ 015197 Y7-15197 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-2, 60 °, m..
TM-2-8221/EZ
015197
Y7-15197
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller changeover switch (part number TM-2-8221/EZ) is a miniature rotary device applied in control circuits to manually toggle between distinct operating states or signal paths in automated systems. Technicians rely on these switches for dependable low-current switching tasks inside electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Reverser
- Number of poles: 2
- With zero (off) position: No
- With retraction in 0-position: No
- Rated permanent current Iu: 10 A
- Rated operation current Ie at AC-3, 400 V: 0 A
- Rated operation power at AC-3, 400 V: 2.2 kW
- Degree of protection (IP), front side: IP65
- Degree of protection (NEMA), front side: 12
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Complete device in housing: No
- Housing material: Plastic
- Type of control element: Short thumb-grip
More info
▲General specifications
UL report applies to both US and Canada
Certified by UL for use in Canada
IEC/EN 60947-3
UL
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 94
CE
CSA
IEC/EN 60947-5-1
CSA-C22.2 No. 14-05
UL File No.: E36332
