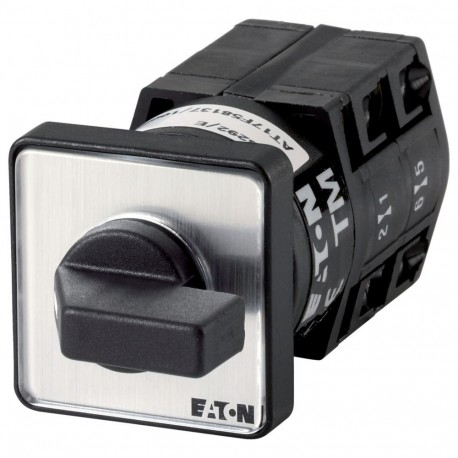

EATON - MOELLER TM-2-8221/E TM-2-8221/E 084369 Y7-84369 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-2, 60 °, ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8221/E 084369 Y7-84369 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-2, 60 °, ma..

TM-2-8221/E

084369

Y7-84369

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 10 A, front plate: 1-2, 60 °, maintained, flush mounting Switch 4-pole switch 10 A Indicator plate: 1-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, Without 0 (Off) position, 1-2, Design number 8221 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for compact control setups, the Eaton Moeller TM-2-8221/E changeoverswitch provides dependable manual source selection and signal routing within confined electrical enclosures. These modular units facilitate straightforward switching logic across control loops and instrumentation architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
084369
Model Code
TM-2-8221/E
EAN
4015080843696
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
40 mm
Product Weight
0.04 kg
Certifications
CSA-C22.2 No. 94
UL File No.: E36332
CE
IEC/EN 60947
VDE 0660
Certified by UL for use in Canada
UL
CSA-C22.2 No. 14-05
IEC/EN 60947-3
UL Category Control No.: NLRV
UL 508
CSA
UL report applies to both US and Canada
IEC/EN 60947-5-1
