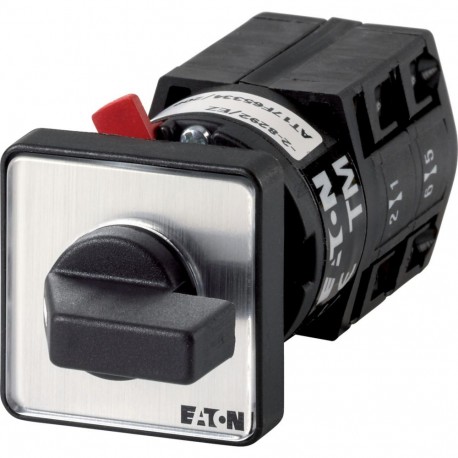

EATON - MOELLER TM-2-8219/EZ TM-2-8219/EZ 045482 Y7-45482 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices Sw.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8219/EZ 045482 Y7-45482 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices Sw..

TM-2-8219/EZ

045482

Y7-45482

EATON - MOELLER

1 Pcs.

Industrial Automation Bussines and Industrial Control Devices Switching Devices Switch 4-pole 10 A Indicator plate: 1-0-2 90° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, With 0 (Off) position, 1-0-2, Design number 8219 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The TM-2-8219/EZ by Eaton Moeller is a reverser designed to manage directional changes and operational modes within industrial control assemblies. Such components are routinely deployed in control panels and machinery setups to safely alter motor rotation paths or switch between distinct electrical circuits. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
045482
Model Code
TM-2-8219/EZ
EAN
4015080454823
Product Length/Depth
87 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.044 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947-5-1
Certified by UL for use in Canada
CSA-C22.2 No. 94
CE
UL Category Control No.: NLRV
UL report applies to both US and Canada
IEC/EN 60947
UL
UL File No.: E36332
VDE 0660
UL 508
CSA
CSA-C22.2 No. 14-05

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
