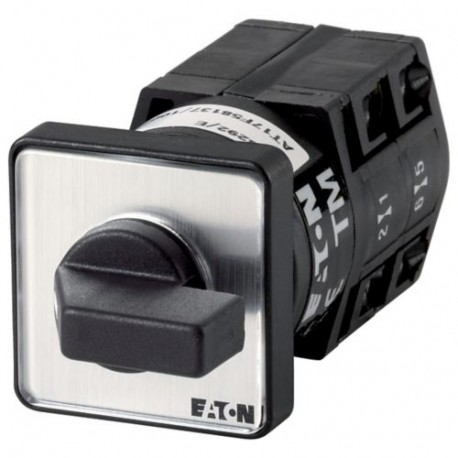

EATON - MOELLER TM-2-8215/E TM-2-8215/E 034537 Y7-34537 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 2 0 1, 30 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8215/E 034537 Y7-34537 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 2 0 1, 30 °, ..

TM-2-8215/E

034537

Y7-34537

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 10 A, front plate: 2>0<1, 30 °, momentary, flush mounting Switch 4-pole switch 10 A Indicator plate: 2>0<1 30° Eaton Moeller® series TM Changeover switches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 30 °, momentary, With 0 (Off) position, with spring-return from both directions, 2>0<1, Design number 8215

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-2-8215/E is a changeover switch designed for compact control panels requiring momentary signal routing and circuit toggling. These space-saving rotary switches allow operators to pulse control signals or switch between active operational modes securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: TM-2-8215/E
  • Catalogue code: 034537
  • Catalogue title: TM-2-8215/E 034537 Y7-34537 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 2 0 1, 30 °, ..
  • Product description: General specifications Product Name Eaton Moeller® series TM Changeover switch Catalog Number 034537 Model Code TM-2-8215/E EAN 4015080345374 Product Length/Depth 74 mm Product Height 30 mm Product Width 30 mm Product We
  • Manufacturer summary: Changeoverswitches, Contacts: 4, 10 A, front plate: 2>0 0 0<1, Design number 8215

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
034537
Model Code
TM-2-8215/E
EAN
4015080345374
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.039 kg
Certifications
IEC/EN 60947-5-1
VDE 0660
IEC/EN 60947
UL
CSA-C22.2 No. 14-05
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA
UL 508
UL report applies to both US and Canada
Certified by UL for use in Canada
UL File No.: E36332
CE
CSA-C22.2 No. 94

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
