EATON - MOELLER TM-2-8211/EZ TM-2-8211/EZ 015166 Y7-15166 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8211/EZ 015166 Y7-15166 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °,..

TM-2-8211/EZ

015166

Y7-15166

EATON - MOELLER

1 Pcs.

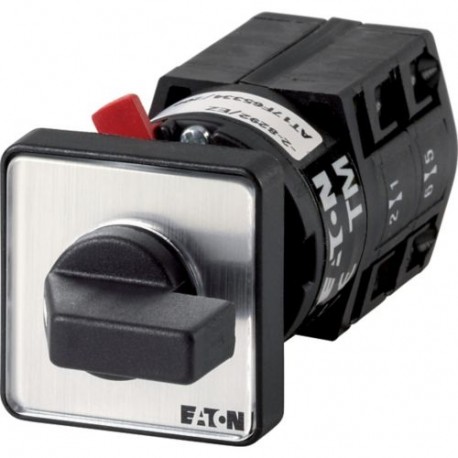

Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °, maintained, centre mounting Switch 4-pole switch 10 A Indicator plate: 1-0-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
015166
Model Code
TM-2-8211/EZ
EAN
4015080151661
Product Length/Depth
87 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.043 kg
Certifications
UL report applies to both US and Canada
IEC/EN 60947-5-1
CE
UL File No.: E36332
UL Category Control No.: NLRV
IEC/EN 60947-3
Certified by UL for use in Canada
IEC/EN 60947
UL
VDE 0660
CSA
CSA-C22.2 No. 94
UL 508
CSA-C22.2 No. 14-05

ETIM for 015166 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 2
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 10 A
Rated operation current Ie at AC-3, 400 V (EF001392) 0 A
Rated operation power at AC-3, 400 V (EF001364) 2.2 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection

Product Datasheet
