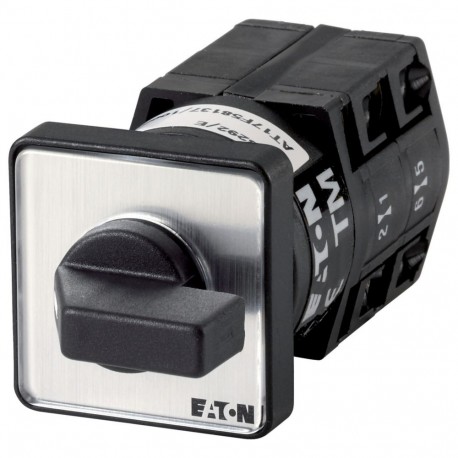

EATON - MOELLER TM-2-8211/E TM-2-8211/E 098607 Y7-98607 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8211/E 098607 Y7-98607 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °, ..

TM-2-8211/E

098607

Y7-98607

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch 4-pole switch 10 A Indicator plate: 1-0-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller TM-2-8211/E changeoverswitch is a compact manual switching device used to redirect electrical signals or secondary power lines between alternate paths. Technicians install these components in control cabinets to manage directional or source switching requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
098607
Model Code
TM-2-8211/E
EAN
4015080986072
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
UL Category Control No.: NLRV
UL File No.: E36332
Certified by UL for use in Canada
CE
UL 508
UL report applies to both US and Canada
VDE 0660
IEC/EN 60947
IEC/EN 60947-5-1
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
CSA
IEC/EN 60947-3
UL

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
