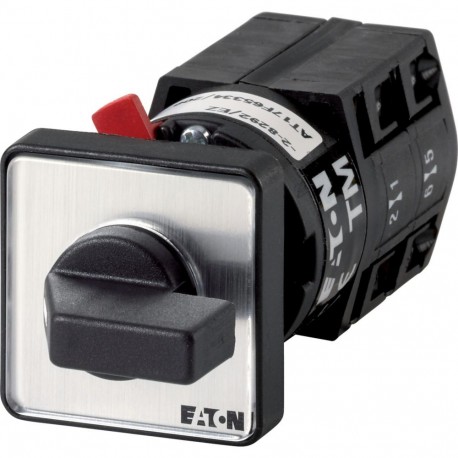

EATON - MOELLER TM-2-8177/EZ TM-2-8177/EZ 016838 Y7-16838 EATON ELECTRIC Spring-return switch, Contacts: 4, 10 A, front plate: START 1-0-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8177/EZ 016838 Y7-16838 EATON ELECTRIC Spring-return switch, Contacts: 4, 10 A, front plate: START 1-0-..

TM-2-8177/EZ

016838

Y7-16838

EATON - MOELLER

1 Pcs.

Spring-return switch, Contacts: 4, 10 A, front plate: START>1-0-2 Switch with return 4 poles 10 A Indicator plate: Eaton Moeller® series TM Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return from both directions, START>1-0-2 Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: momentary/maintained, With 0 (Off) position, with spring-return from both directions, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: START>1-0-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A TM-2-8177/EZ 016838 Y7-16838 Eaton Electric spring-return switch functions as a manually operated control component within electrical distribution enclosures, directing power flow and managing circuit states in machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
016838
Model Code
TM-2-8177/EZ
EAN
4015080168386
Product Length/Depth
87 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.044 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947-5-1
UL
UL Category Control No.: NLRV
Certified by UL for use in Canada
CE
IEC/EN 60947
UL 508
CSA
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
UL File No.: E36332
VDE 0660
UL report applies to both US and Canada

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
