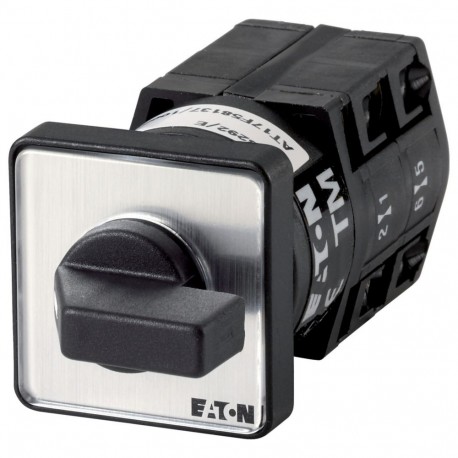

EATON - MOELLER TM-2-8177/E TM-2-8177/E 010808 Y7-10808 EATON ELECTRIC Spring-return switch, Contacts: 4, 10 A, front plate: START 1-0-2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8177/E 010808 Y7-10808 EATON ELECTRIC Spring-return switch, Contacts: 4, 10 A, front plate: START 1-0-2..

TM-2-8177/E

010808

Y7-10808

EATON - MOELLER

1 Pcs.

Spring-return switch, Contacts: 4, 10 A, front plate: START>1-0-2 Switch with return 4 poles 10 A Indicator plate: Eaton Moeller® series TM Spring-return switch, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return from both directions, START>1-0-2 Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: momentary/maintained, With 0 (Off) position, with spring-return from both directions, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: START>1-0-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller spring-return switch is an electromechanical control device designed for manually managing circuits in industrial machinery and electrical panels. These components are typically integrated into control desks to initiate specific operations or alter operational states through direct operator interaction. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
010808
Model Code
TM-2-8177/E
EAN
4015080108085
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
CSA-C22.2 No. 94
UL report applies to both US and Canada
UL Category Control No.: NLRV
CSA-C22.2 No. 14-05
VDE 0660
UL File No.: E36332
IEC/EN 60947-3
CE
Certified by UL for use in Canada
IEC/EN 60947
UL 508
UL
CSA
IEC/EN 60947-5-1
