> EATON - MOELLER > Disconnectors and Cam Switches > 016878

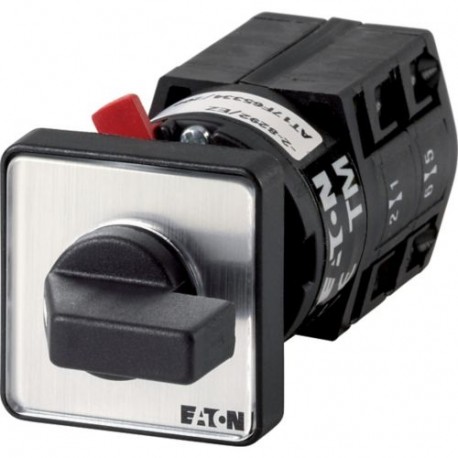

EATON - MOELLER TM-2-15432/EZ TM-2-15432/EZ 016878 Y7-16878 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: HAND-0-AUTO.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-15432/EZ 016878 Y7-16878 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: HAND-0-AUTO..

TM-2-15432/EZ

016878

Y7-16878

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 10 A, front plate: HAND-0-AUTO, 60 °, maintained, centre mounting Switch 4-pole switch 10 A Indicator plate: HAND-0-AUTO 60 Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15432 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: HAND-0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
016878
Model Code
TM-2-15432/EZ
EAN
4015080168782
Product Length/Depth
87 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.043 kg
Certifications
VDE 0660
Certified by UL for use in Canada
IEC/EN 60947-5-1
CE
CSA-C22.2 No. 14-05
UL
CSA
UL Category Control No.: NLRV
IEC/EN 60947-3
UL report applies to both US and Canada
IEC/EN 60947
CSA-C22.2 No. 94
UL 508
UL File No.: E36332

ETIM for 016878 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Reverser
Number of poles (EF001391) 2
Max. rated operation voltage Ue AC (EF007355) 500 V
Rated permanent current Iu (EF001389) 10 A
Number of switch positions (EF000231) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
