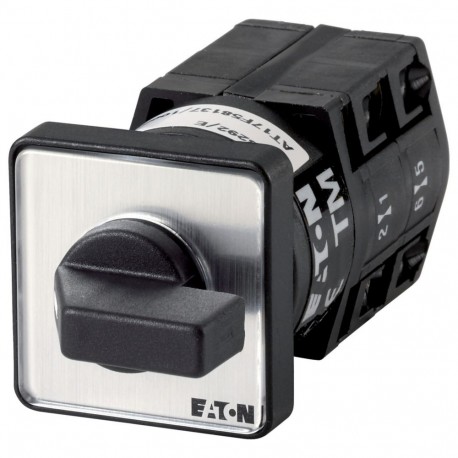

EATON - MOELLER TM-2-15432/E TM-2-15432/E 027418 Y7-27418 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: HAND-0-AUTO,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-15432/E 027418 Y7-27418 EATON ELECTRIC Changeoverswitches, Contacts: 4, 10 A, front plate: HAND-0-AUTO,..

TM-2-15432/E

027418

Y7-27418

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 10 A, front plate: HAND-0-AUTO, 60 °, maintained, flush mounting Switch 4-pole switch 10 A Indicator plate: HAND-0-AUTO 60 Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15432 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: HAND-0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A changeover switch like the Eaton Moeller TM-2-15432/E is implemented in control circuitry to toggle power paths between manual, off, and automatic operational states.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
027418
Model Code
TM-2-15432/E
EAN
4015080274186
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947-5-1
UL
CSA
UL 508
UL Category Control No.: NLRV
IEC/EN 60947
UL report applies to both US and Canada
Certified by UL for use in Canada
CSA-C22.2 No. 94
CE
CSA-C22.2 No. 14-05
UL File No.: E36332
VDE 0660
