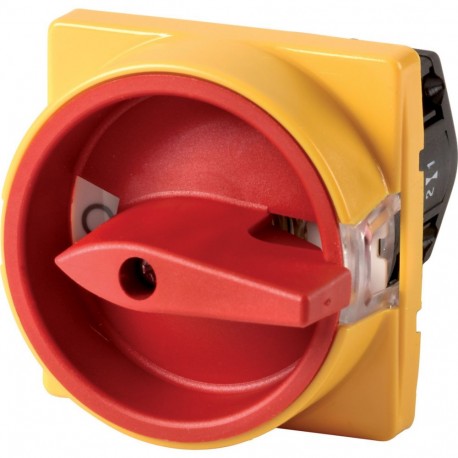

Control circuit switches, Emergency-Stop function, Contacts: 1, 10 A, 90 °, flush mounting, up to 250 V AC per contact Control Switch 1 Pole 10A Faceplate 0-1 90° Mounting Eaton Moeller® series TM Control circuit switches, TM, 10 A, flush mounting, Contacts: 1, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Control circuit isolator, Product range: Control switches, Part group reference: TM, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: up to 250 V AC per contact, Contacts: 1, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-1-8290/E/SVB is a compact control circuit switch designed with an integrated emergency stop function for secondary automation applications. These control devices are typically wired into low-power signaling and auxiliary circuits to facilitate rapid operator response during safety events.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 10 A
  • Rated permanent current at AC-21, 400 V (EF009165): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 0 kW
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Rated operation power at AC-23, 400 V (EF007027): 3 kW
  • Switching power at 400 V (EF009166): 0 kW
  • Conditioned rated short-circuit current Iq (EF001444): 0 kA
  • Number of poles (EF001391): 1
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Accessory Control circuit isolator
Catalog Number
045477
Model Code
TM-1-8290/E/SVB
EAN
4015080454779
Product Length/Depth
77 mm
Product Height
48 mm
Product Width
30 mm
Product Weight
0.069 kg
Certifications
Certified by UL for use in Canada
IEC/EN 60947
UL File No.: E36332
UL
UL report applies to both US and Canada
CSA
UL Category Control No.: NLRV
CE
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
UL 508
IEC/EN 60947-3
IEC/EN 60947-5-1
VDE 0660
Catalog Notes
up to 250 V AC per contact

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
