EATON - MOELLER TM-1-8240/EZ TM-1-8240/EZ 015226 Y7-15226 EATON ELECTRIC Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, 2 st.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

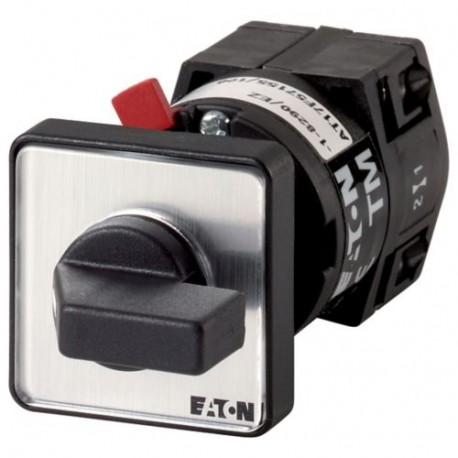

TM-1-8240/EZ 015226 Y7-15226 EATON ELECTRIC Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, 2 st..

TM-1-8240/EZ

015226

Y7-15226

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, 2 steps, 60°, maintained, centre mounting Step switch; 2 poles; 10 A; Indicator plate: 0-1-2; 60 °; Flush mounting with central fixation Eaton Moeller® series TM Step switches, TM, 10 A, centre mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, 0-1-2, Design number 8240 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Number of steps: 2 steps, 60°, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-1-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller Step switches, item T0-3-151/E, function as dependable manual control devices for directing multi-circuit configurations in industrial automation systems. These front-mounted rotary units enable precise sequential selection across multiple distinct operational steps. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 6
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
015226
Model Code
TM-1-8240/EZ
EAN
4015080152262
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Certifications
Certified by UL for use in Canada
CSA-C22.2 No. 94
UL report applies to both US and Canada
VDE 0660
UL 508
UL File No.: E36332
IEC/EN 60947-5-1
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA
IEC/EN 60947
UL
CE
CSA-C22.2 No. 14-05

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
