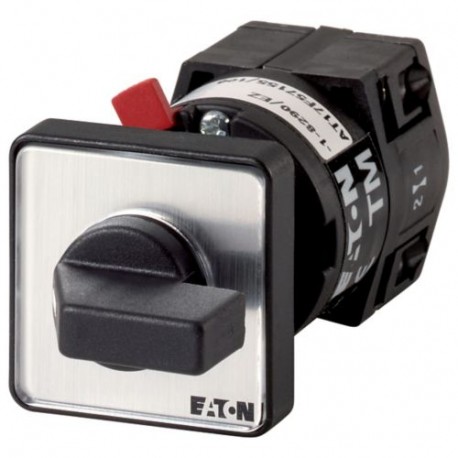

Changeoverswitches, Contacts: 2, 10 A, front plate: 1-2, 60 °, maintained, centre mounting Switch Switch; 2 poles; 10 A; Indicator plate: 1-2; 60 °; Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, Without 0 (Off) position, 1-2, Design number 8220 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller changeoverswitch (part number TM-1-8220/EZ) provides manual circuit redirection and source selection within electrical control panels. These compact rotary switches are standard components for redirecting signals or alternating power pathways in machine automation networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 1.1 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
000692
Model Code
TM-1-8220/EZ
EAN
4015080006923
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Certifications
UL Category Control No.: NLRV
UL report applies to both US and Canada
CE
Certified by UL for use in Canada
CSA-C22.2 No. 14-05
IEC/EN 60947-5-1
CSA-C22.2 No. 94
IEC/EN 60947-3
UL
VDE 0660
UL 508
UL File No.: E36332
CSA
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
