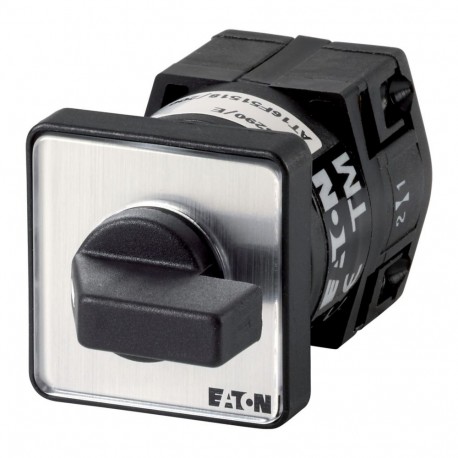

EATON - MOELLER TM-1-8218/E TM-1-8218/E 015553 Y7-15553 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8218/E 015553 Y7-15553 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 90 °, ..

TM-1-8218/E

015553

Y7-15553

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 90 °, maintained, flush mounting Switch 2-pole switch 10 A Indicator plate: 1-0-2 90° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, 1-0-2, Design number 8218 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
015553
Model Code
TM-1-8218/E
EAN
4015080155539
Product Length/Depth
62 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.029 kg
Certifications
CSA
UL 508
IEC/EN 60947-3
IEC/EN 60947-5-1
VDE 0660
CSA-C22.2 No. 14-05
UL
IEC/EN 60947
Certified by UL for use in Canada
UL report applies to both US and Canada
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CE
UL File No.: E36332

ETIM for 015553 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 1
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 10 A
Rated operation current Ie at AC-3, 400 V (EF001392) 0 A
Rated operation power at AC-3, 400 V (EF001364) 1.1 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
