EATON - MOELLER TM-1-8214/EZ TM-1-8214/EZ 016673 Y7-16673 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: 2 0 1, 30 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

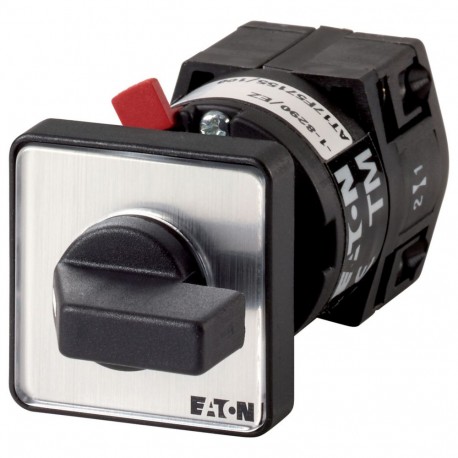

TM-1-8214/EZ 016673 Y7-16673 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: 2 0 1, 30 °,..

TM-1-8214/EZ

016673

Y7-16673

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 10 A, front plate: 2>0<1, 30 °, momentary, centre mounting Switch 2-pole switch 10 A Indicator plate: 2>0<1 30° Eaton Moeller® series TM Changeover switches, TM, 10 A, center mounting, 1 contact unit(s), Contacts: 2, 30 °, momentary, With 0 (Off) position, with spring-return from both directions, 2>0<1, Design number 8214 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 30 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions, front plate: 2>0<1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-1-8214/EZ is a miniature changeoverswitch deployed in low-current control circuits for manual source selection and signal routing. These rotary switches enable operators to toggle between distinct operational modes in compact electrical architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 1.1 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
016673
Model Code
TM-1-8214/EZ
EAN
4015080166733
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Certifications
VDE 0660
IEC/EN 60947
Certified by UL for use in Canada
CSA
UL File No.: E36332
IEC/EN 60947-3
UL 508
UL
UL Category Control No.: NLRV
UL report applies to both US and Canada
CSA-C22.2 No. 94
IEC/EN 60947-5-1
CE
CSA-C22.2 No. 14-05

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
