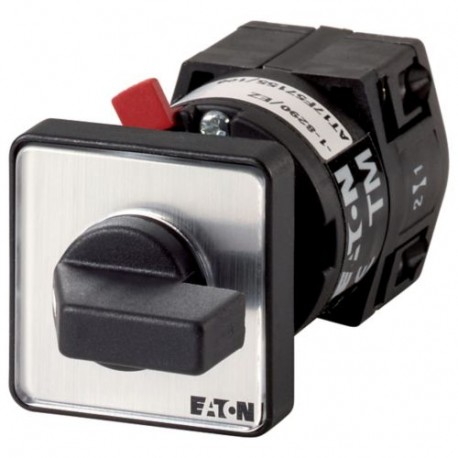

EATON - MOELLER TM-1-8210/EZ TM-1-8210/EZ 015137 Y7-15137 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8210/EZ 015137 Y7-15137 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 60 °,..

TM-1-8210/EZ

015137

Y7-15137

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 60 °, maintained, centre mounting Switch Switch 2 poles 10 A Indicator plate: 1-0-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8210 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeoverswitches like the Eaton Moeller TM-1-8210/EZ provide reliable manual source selection and signal routing capabilities across industrial automation machinery. Personnel use these manual switching elements to transition a load between multiple alternative circuits or operational modes safely. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 1.1 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
015137
Model Code
TM-1-8210/EZ
EAN
4015080151371
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.032 kg
Certifications
UL 508
UL Category Control No.: NLRV
IEC/EN 60947-5-1
UL report applies to both US and Canada
CE
IEC/EN 60947-3
UL
CSA-C22.2 No. 14-05
CSA
CSA-C22.2 No. 94
IEC/EN 60947
Certified by UL for use in Canada
UL File No.: E36332
VDE 0660
