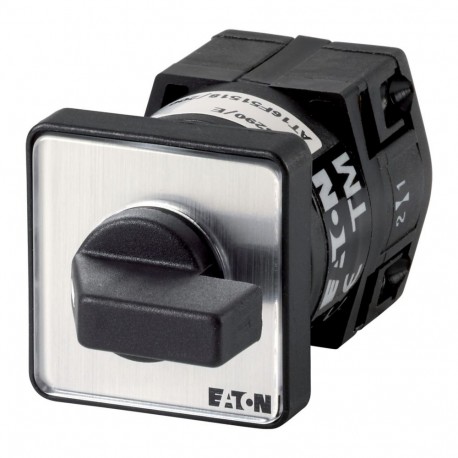

EATON - MOELLER TM-1-8210/E TM-1-8210/E 096234 Y7-96234 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8210/E 096234 Y7-96234 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 60 °, ..

TM-1-8210/E

096234

Y7-96234

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 10 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch Switch; 2 poles; 10 A; Indicator plate: 1-0-2; 60 °; Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8210 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
096234
Model Code
TM-1-8210/E
EAN
4015080962342
Product Length/Depth
62 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.029 kg
Certifications
IEC/EN 60947
CE
CSA
CSA-C22.2 No. 14-05
IEC/EN 60947-5-1
UL Category Control No.: NLRV
UL report applies to both US and Canada
Certified by UL for use in Canada
UL 508
IEC/EN 60947-3
CSA-C22.2 No. 94
UL
UL File No.: E36332
VDE 0660

ETIM for 096234 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 1
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 10 A
Rated operation current Ie at AC-3, 400 V (EF001392) 0 A
Rated operation power at AC-3, 400 V (EF001364) 1.1 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
