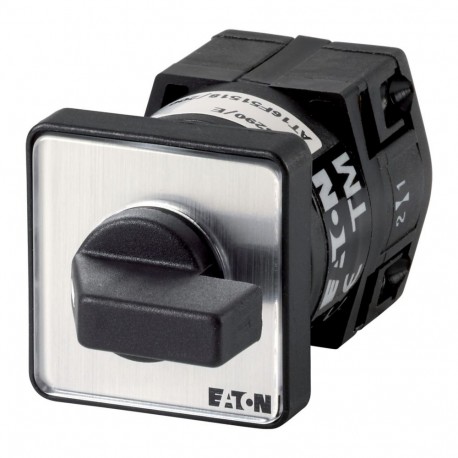

EATON - MOELLER TM-1-8178/E TM-1-8178/E 098608 Y7-98608 EATON ELECTRIC ON-OFF button, Contacts: 2, 10 A, front plate: 0-I START, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8178/E 098608 Y7-98608 EATON ELECTRIC ON-OFF button, Contacts: 2, 10 A, front plate: 0-I START, 90 °, m..

TM-1-8178/E

098608

Y7-98608

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 2, 10 A, front plate: 0-I ON-OFF pushbutton switch 2 poles 10 A Indicator plate: 0-I Eaton Moeller® series TM ON-OFF button, TM, 10 A, flush mounting, 1 contact unit(s), Contacts: 2, 90 °, momentary, With 0 (Off) position, With spring-return from start to 1, 0-I ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: momentary, With 0 (Off) position, With spring-return from start to 1, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-I

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a compact control interface, this Eaton Moeller TM-1-8178/E ON-OFF button is designed for panel integration to initiate start sequences and manage low-amperage switching tasks. Panel operators rely on such components for dependable machine startup and logic control input.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Accessory ON OFF button
Catalog Number
098608
Model Code
TM-1-8178/E
EAN
4015080986089
Product Length/Depth
62 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.029 kg
Certifications
CE
CSA-C22.2 No. 14-05
UL 508
CSA-C22.2 No. 94
UL report applies to both US and Canada
CSA
IEC/EN 60947-5-1
VDE 0660
IEC/EN 60947-3
UL
UL Category Control No.: NLRV
IEC/EN 60947
Certified by UL for use in Canada
UL File No.: E36332

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
