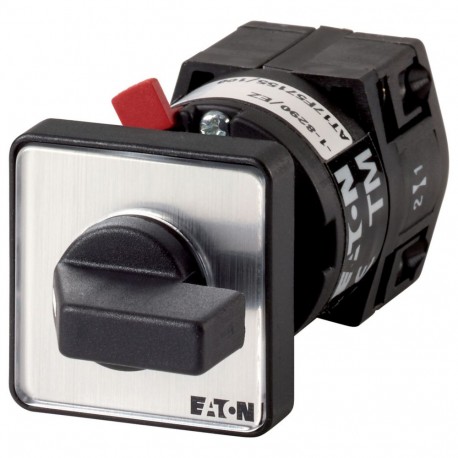

EATON - MOELLER TM-1-8175/EZ TM-1-8175/EZ 015690 Y7-15690 EATON ELECTRIC ON-OFF button, Contacts: 1, 10 A, front plate: I START, 30 °, mo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8175/EZ 015690 Y7-15690 EATON ELECTRIC ON-OFF button, Contacts: 1, 10 A, front plate: I START, 30 °, mo..

TM-1-8175/EZ

015690

Y7-15690

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 1, 10 A, front plate: I Push button switch ON-OFF; 1 pole; 10 A; Indicator plate: I Eaton Moeller® series TM ON-OFF button, TM, 10 A, center mounting, 1 contact unit(s), Contacts: 1, 30 °, momentary, With 0 (Off) position, I ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 30 °, Switching performance: momentary, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: I

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Accessory ON OFF button
Catalog Number
015690
Model Code
TM-1-8175/EZ
EAN
4015080156901
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.033 kg
Certifications
Certified by UL for use in Canada
IEC/EN 60947-5-1
IEC/EN 60947-3
UL File No.: E36332
VDE 0660
CSA
UL
CSA-C22.2 No. 14-05
UL 508
CE
UL Category Control No.: NLRV
UL report applies to both US and Canada
CSA-C22.2 No. 94
IEC/EN 60947

ETIM for 015690 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) On/Off switch
Number of poles (EF001391) 1
Max. rated operation voltage Ue AC (EF007355) 500 V
Rated permanent current Iu (EF001389) 10 A
Number of switch positions (EF000231) 2
With zero (off) position (EF001416) No
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
