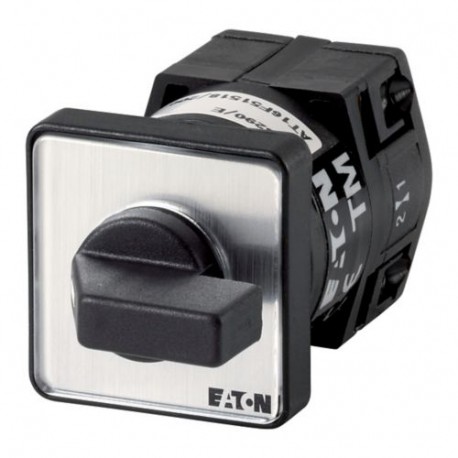

EATON - MOELLER TM-1-8175/E TM-1-8175/E 091489 Y7-91489 EATON ELECTRIC ON-OFF button, Contacts: 1, 10 A, front plate: I START, 30 °, mom.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8175/E 091489 Y7-91489 EATON ELECTRIC ON-OFF button, Contacts: 1, 10 A, front plate: I START, 30 °, mom..

TM-1-8175/E

091489

Y7-91489

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 1, 10 A, front plate: I ON-OFF Push Button Switch 1 Pole 10 A Indicator Plate: I Eaton Moeller® series TM ON-OFF button, TM, 10 A, flush mounting, 1 contact unit(s), Contacts: 1, 30 °, momentary, With 0 (Off) position, I ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 30 °, Switching performance: momentary, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: I

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-1-8175/E ON-OFF buttons provide manual actuation control for starting and stopping industrial equipment cycles. Panel builders mount these compact toggle units onto control panel fronts for direct operational interaction. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Accessory ON OFF button
Catalog Number
091489
Model Code
TM-1-8175/E
EAN
4015080914891
Product Length/Depth
62 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.029 kg
Certifications
Certified by UL for use in Canada
CSA-C22.2 No. 14-05
UL
IEC/EN 60947-5-1
IEC/EN 60947-3
UL 508
CSA
CE
UL File No.: E36332
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60947
UL report applies to both US and Canada
CSA-C22.2 No. 94
