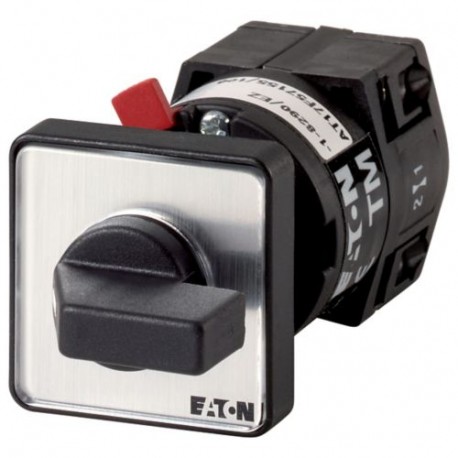

EATON - MOELLER TM-1-15431/EZ TM-1-15431/EZ 000691 Y7-691 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: HAND-0-AUTO, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-15431/EZ 000691 Y7-691 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: HAND-0-AUTO, ..

TM-1-15431/EZ

000691

Y7-691

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 10 A, front plate: HAND-0-AUTO, 60 °, maintained, centre mounting Switch Switch; 2 poles; 10 A; Indicator plate: HAND-0-AUTO; 60 Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15431 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: HAND-0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

TM-1-15431/EZ 000691 Y7-691 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: HAND-0-AUTO, .. manufactured by Eaton Moeller functions as a compact changeover switch designed for control circuit routing and low-current automation tasks. Engineers implement these compact units to manage dual-source feeds or manual overrides in space-constrained panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
000691
Model Code
TM-1-15431/EZ
EAN
4015080006916
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.033 kg
Certifications
CSA
IEC/EN 60947-5-1
UL
UL Category Control No.: NLRV
IEC/EN 60947
UL report applies to both US and Canada
CE
VDE 0660
IEC/EN 60947-3
CSA-C22.2 No. 94
UL File No.: E36332
Certified by UL for use in Canada
CSA-C22.2 No. 14-05
UL 508
