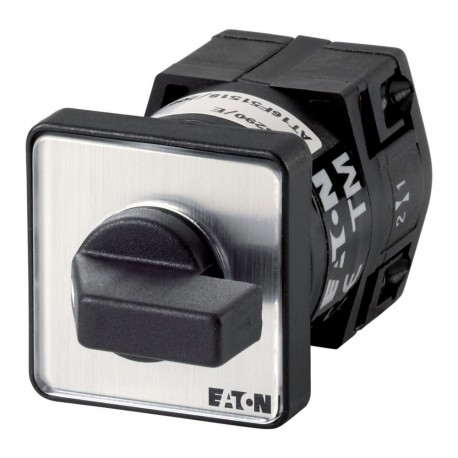

EATON - MOELLER TM-1-15431/E TM-1-15431/E 025045 Y7-25045 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: HAND-0-AUTO,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-15431/E 025045 Y7-25045 EATON ELECTRIC Changeoverswitches, Contacts: 2, 10 A, front plate: HAND-0-AUTO,..

TM-1-15431/E

025045

Y7-25045

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 10 A, front plate: HAND-0-AUTO, 60 °, maintained, flush mounting Switch 2-pole switch 10 A Indicator plate: HAND-0-AUTO 60 Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15431 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: HAND-0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeoverswitch (part number TM-1-15431/E) serves as a manual switching device for directing electrical currents between alternative paths or operating modes within industrial control panels.

These components are commonly installed in machine control panels and distribution systems to handle manual source selection, reversing, or circuit routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
025045
Model Code
TM-1-15431/E
EAN
4015080250456
Product Length/Depth
62 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.029 kg
Certifications
Certified by UL for use in Canada
IEC/EN 60947
IEC/EN 60947-5-1
UL report applies to both US and Canada
UL 508
CE
UL Category Control No.: NLRV
UL
UL File No.: E36332
VDE 0660
CSA
IEC/EN 60947-3
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
