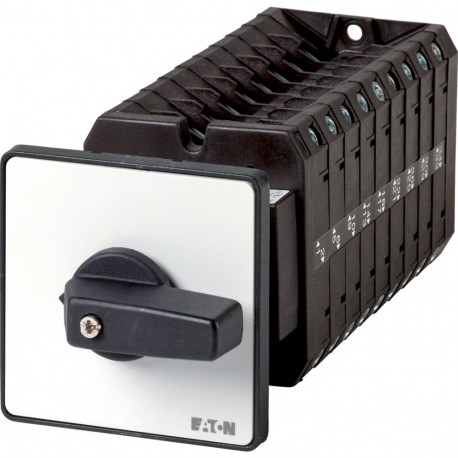

T5-9-SOND*/Z 908029 Y7-908029 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 9 contact unit(s)
T5-9-SOND*/Z
908029
Y7-908029
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A T5-9-SOND*/Z Eaton Electric non-standard switch functions as a heavy-duty control device for safely routing, starting, or interrupting electrical currents in complex industrial machinery. Such specialized switching units help operators manage power distribution under demanding load constraints.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 100 A
- Rated permanent current at AC-23, 400 V (EF011777): 100 A
- Rated permanent current at AC-21, 400 V (EF009165): 100 A
- Rated operation power at AC-3, 400 V (EF001364): 30 kW
- Rated short-time withstand current lcw (EF007050): 1.7 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 55 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
