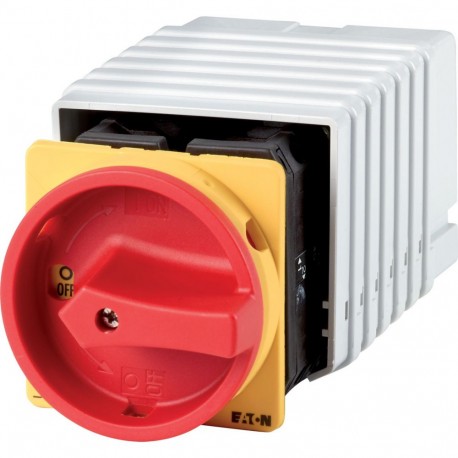

T5-7-SOND*/EA/SVB 907993 Y7-907993 EATON ELECTRIC Non-standard switch, T5, 100 A, flush mounting, 7 contact ..
T5-7-SOND*/EA/SVB
907993
Y7-907993
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A T5-7-SOND*/EA/SVB 907993 Y7-907993 EATON ELECTRIC Non-standard switch functions as a specialized cam switch utilized for complex control circuits and manual load switching in heavy machinery. Such components provide reliable multi-pole switching configurations tailored to demanding operational sequences within manufacturing plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 100 A
- Rated permanent current at AC-23, 400 V (EF011777): 100 A
- Rated permanent current at AC-21, 400 V (EF009165): 100 A
- Rated operation power at AC-3, 400 V (EF001364): 30 kW
- Rated short-time withstand current lcw (EF007050): 1.7 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 55 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
