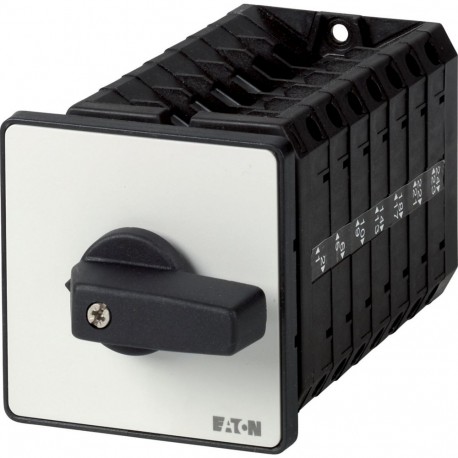

EATON - MOELLER T5-7-SOND*/E T5-7-SOND*/E 907984 Y7-907984 EATON ELECTRIC Non-standard switch, T5, 100 A, flush mounting, 7 contact unit(.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-7-SOND*/E 907984 Y7-907984 EATON ELECTRIC Non-standard switch, T5, 100 A, flush mounting, 7 contact unit(..

T5-7-SOND*/E

907984

Y7-907984

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, flush mounting, 7 contact unit(s) T5-7-SOND*/E Eaton Moeller® series T5 Non-standard switch, T5, 100 A, flush mounting, 7 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Notes: customized version according to form, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 7 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5-7-SOND*/E is a non-standard rotary switch designed to handle complex circuit routing requirements in custom machinery. Multi-contact control switches allow engineers to configure tailored switching sequences for specialized industrial automation tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
907984
Model Code
T5-7-SOND*/E
Product Length/Depth
190 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.13 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
