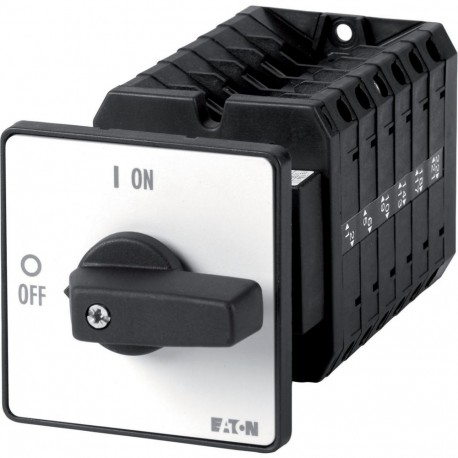

EATON - MOELLER T5-6-SOND*/Z T5-6-SOND*/Z 908026 Y7-908026 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 6 contact unit(s) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-6-SOND*/Z 908026 Y7-908026 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 6 contact unit(s)

T5-6-SOND*/Z

908026

Y7-908026

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, rear mounting, 6 contact unit(s) T5-6-SOND*/Z Eaton Moeller® series T5 Non-standard switch, T5, 100 A, rear mounting, 6 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5-6-SOND*/Z is a non-standard switch built for specialized power routing and circuit control within demanding industrial setups. Custom rotary switches of this caliber offer reliable performance where standard off-the-shelf control configurations are insufficient.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
908026
Model Code
T5-6-SOND*/Z
Product Length/Depth
215 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.028 kg
Certifications
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
