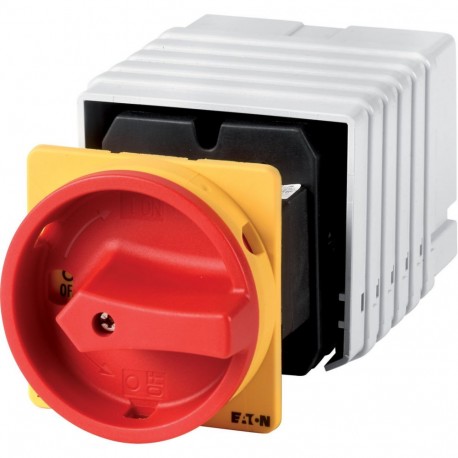

EATON - MOELLER T5-6-15168/V/SVB T5-6-15168/V/SVB 094892 Y7-94892 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 100 A, Emergency-Stop f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-6-15168/V/SVB 094892 Y7-94892 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 100 A, Emergency-Stop f..

T5-6-15168/V/SVB

094892

Y7-94892

EATON - MOELLER

1 Pcs.

Main switch, 9-pole + 2 N/O + 1 N/C, 100 A, Emergency-Stop function, 90 °, rear mounting General Switch 9 poles + 1 NO + 1 NC 100 A 90° Bottom Mount Eaton Moeller® series T5 Main switch, T5, 100 A, rear mounting, 6 contact unit(s), 9-pole, 2 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 9-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing multi-pole isolation and emergency-stop capabilities, the Eaton Moeller T5-6-15168/V/SVB 094892 Y7-94892 EATON ELECTRIC Main switch ensures secure control panel operation.

Multi-pole main switches are standard in industrial environments to isolate comprehensive electrical lines quickly during emergency protocols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 9
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Main switch
Catalog Number
094892
Model Code
T5-6-15168/V/SVB
EAN
4015080948926
Product Length/Depth
221 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.065 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
