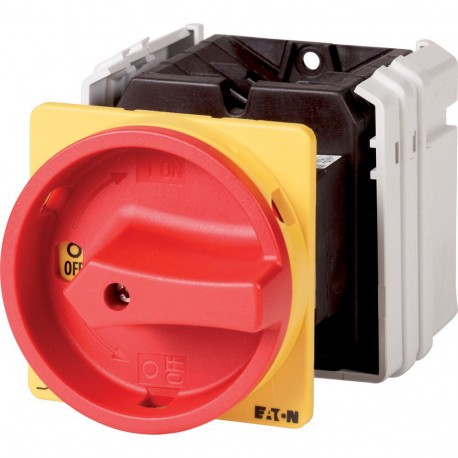

EATON - MOELLER T5-4-SOND*/V/SVB T5-4-SOND*/V/SVB 908006 Y7-908006 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 4 contact un.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-4-SOND*/V/SVB 908006 Y7-908006 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 4 contact un..

T5-4-SOND*/V/SVB

908006

Y7-908006

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, rear mounting, 4 contact unit(s) T5-4-SOND*/V/SVB Eaton Moeller® series T5 Non-standard switch, T5, 100 A, rear mounting, 4 contact unit(s), Emergency switching off function, With red rotary handle and yellow locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T5-4-SOND*/V/SVB Non-standard switch is a configurable industrial control device used for specialized switching tasks, routing, and circuit isolation in demanding automation environments. Custom rotary switches enable complex operational sequences and reliable power management across diverse industrial processes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
908006
Model Code
T5-4-SOND*/V/SVB
Product Length/Depth
188 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.795 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60204
IEC/EN 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
