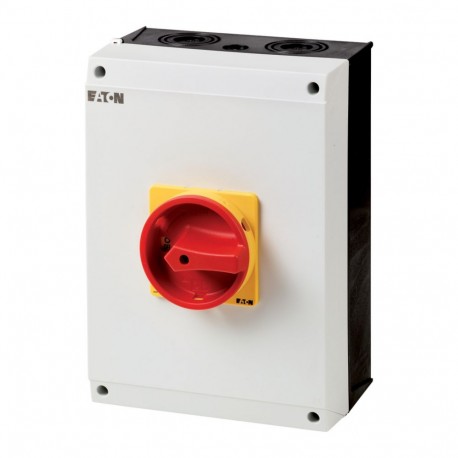

EATON - MOELLER T5-3-8342/I5-SI T5-3-8342/I5-SI 207447 Y7-207447 EATON ELECTRIC safety switch, 6p, 100 A, Emergency-Stop function, Lockable .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-3-8342/I5-SI 207447 Y7-207447 EATON ELECTRIC safety switch, 6p, 100 A, Emergency-Stop function, Lockable ..

T5-3-8342/I5-SI

207447

Y7-207447

EATON - MOELLER

1 Pcs.

safety switch, 6p, 100 A, Emergency-Stop function, Lockable in position 0 with cover interlock, surface mounting, with warning label „safety switch” T5-3-8342/I5-SI Eaton Moeller® series T5 Safety switch, T5, 100 A, 6 pole, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in position 0 with cover interlock, with warning label „safety switch” Safety switch, Product range: safety switch, Part group reference: T5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: with warning label „safety switch”, 6 pole, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller safety switch, part number T5-3-8342/I5-SI, is engineered to interrupt electrical circuits safely during emergency situations or maintenance tasks. Devices of this type are widely implemented in industrial control panels and machine setups to ensure operator protection by providing a reliable means of shutting down power. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Insulated enclosure
Catalog Number
207447
Model Code
T5-3-8342/I5-SI
EAN
4015082074470
Product Length/Depth
167 mm
Product Height
175 mm
Product Width
125 mm
Product Weight
1.856 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
