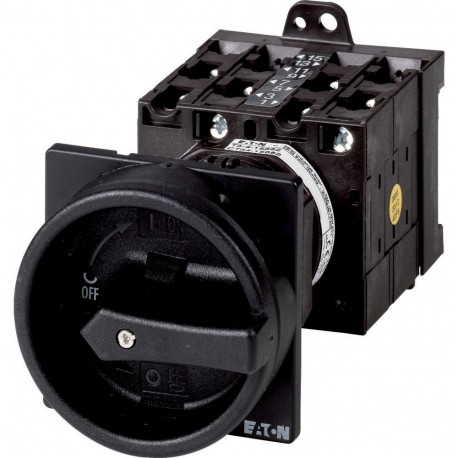

EATON - MOELLER T3-3-SOND*/V/SVB-SW T3-3-SOND*/V/SVB-SW 908093 Y7-908093 EATON ELECTRIC Non-standard switch, T3, 32 A, rear mounting, 3 contact .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-SOND*/V/SVB-SW 908093 Y7-908093 EATON ELECTRIC Non-standard switch, T3, 32 A, rear mounting, 3 contact ..

T3-3-SOND*/V/SVB-SW

908093

Y7-908093

EATON - MOELLER

10 Pcs.

Non-standard switch, T3, 32 A, rear mounting, 3 contact unit(s) T3-3-SOND*/V/SVB-SW Eaton Moeller® series T3 Non-standard switch, T3, 32 A, rear mounting, 3 contact unit(s), STOP function, With black rotary handle and locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Stop Function: STOP function, With black rotary handle and locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-3-SOND*/V/SVB-SW non-standard switch provides reliable manual switching and circuit isolation for complex automation setups. Industrial control systems frequently incorporate versatile rotary switches to direct power paths and ensure safe equipment operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Non-standard switch
Catalog Number
908093
Model Code
T3-3-SOND*/V/SVB-SW
Product Length/Depth
144 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.289 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
