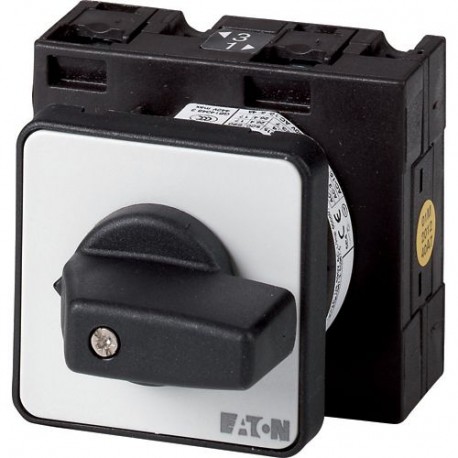

EATON - MOELLER T3-3-SOND*/EZ T3-3-SOND*/EZ 907874 Y7-907874 EATON ELECTRIC Non-standard switch, T3, 32 A, centre mounting, 3 contact unit.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-SOND*/EZ 907874 Y7-907874 EATON ELECTRIC Non-standard switch, T3, 32 A, centre mounting, 3 contact unit..

T3-3-SOND*/EZ

907874

Y7-907874

EATON - MOELLER

10 Pcs.

Non-standard switch, T3, 32 A, centre mounting, 3 contact unit(s) T3-3-SOND*/EZ Eaton Moeller® series T3 Non-standard switch, T3, 32 A, centre mounting, 3 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Notes: customized version according to form, Degree of Protection: Front IP65, Design: center mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A non-standard switch is a specialized electrical control device used in industrial environments to manually route power, manage custom circuit configurations, or isolate specific machinery during maintenance. The Eaton Moeller T3-3-SOND*/EZ provides reliable manual switching performance for demanding panel applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Non-standard switch
Catalog Number
907874
Model Code
T3-3-SOND*/EZ
Product Length/Depth
124 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.233 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
