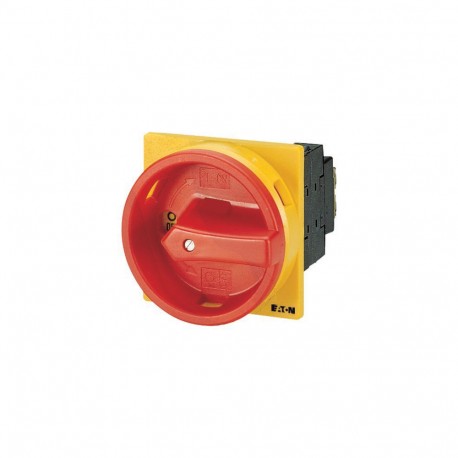

T3-3-SOND*/EA/SVB 907863 Y7-907863 EATON ELECTRIC Non-standard switch, T3, 32 A, flush mounting, 3 contact u..
T3-3-SOND*/EA/SVB
907863
Y7-907863
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial control switches provide reliable manual operation for customized electrical routines, motor controls, and signal routing in manufacturing setups. This Eaton Moeller T3-3-SOND*/EA/SVB unit offers flush mounting flexibility and dependable switching performance for specialized applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
VDE 0660
IEC/EN 60947
IEC/EN 60204
