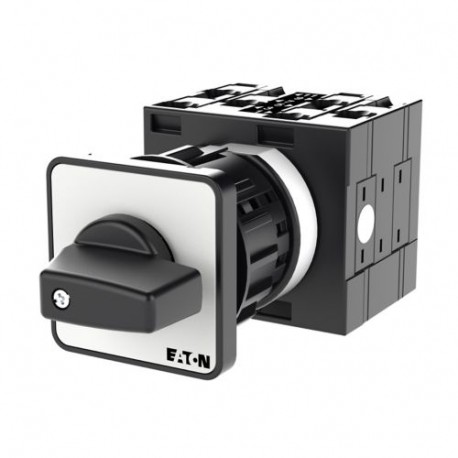

T3-3-8901/EZ 231950 Y7-231950 EATON ELECTRIC On-Off switch, 3 pole + N + 1 N/O + 1 N/C, 32 A, 90 °, centre m..
T3-3-8901/EZ
231950
Y7-231950
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
T3-3-8901/EZ 231950 Y7-231950 EATON ELECTRIC On-Off switch, 3 pole + N + 1 N/O + 1 N/C, 32 A, 90 °, centre m.. from Eaton Moeller acts as a versatile on-off rotary switch equipped with auxiliary contacts. Such switching devices are widely integrated into control cabinets to manually manage power flow and auxiliary signalling circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 4
More info
▲General specifications
CSA Std. C22.2 No. 14-05
IEC 60947
UL 508
VDE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA Class No.: 3211-07
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60947-3
UL
CE
CSA File No.: 012528
CSA-C22.2 No. 94
UL File No.: E36332
IEC/EN 60204
CSA
UL 60947-4-1
