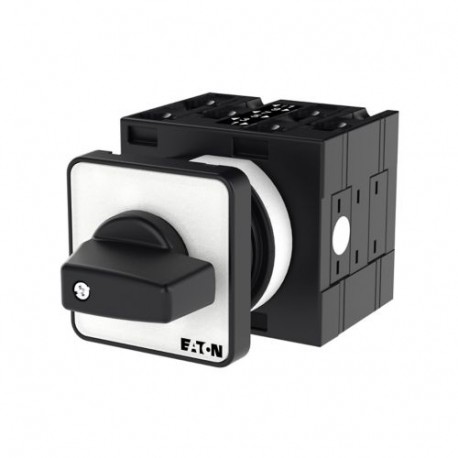

EATON - MOELLER T3-3-15423/E T3-3-15423/E 080849 Y7-80849 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 2-0-1, 45 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-15423/E 080849 Y7-80849 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 2-0-1, 45 °,..

T3-3-15423/E

080849

Y7-80849

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 32 A, front plate: 2-0-1, 45 °, maintained, flush mounting Switch 6-pole 32 A Indicator plate: 2-0-1 45° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, 2-0-1, Design number 15423 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-3-15423/E changeoverswitches provide dependable manual disconnect and selection capabilities for heavy-duty electrical loads and motor control applications. Engineers integrate these reliable panel devices to isolate circuits or toggle system functions safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): On/Off switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
080849
Model Code
T3-3-15423/E
EAN
4015080808497
Product Length/Depth
102 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.21 kg
Certifications
CSA File No.: 012528
UL File No.: E36332
CSA Class No.: 3211-05
CE
UL 60947-4-1
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
CSA
IEC/EN 60204
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
