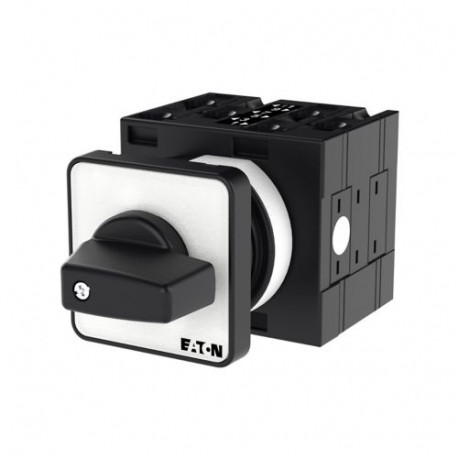

EATON - MOELLER T3-3-15098/E T3-3-15098/E 018736 Y7-18736 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 1-0-2, 45 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-15098/E 018736 Y7-18736 EATON ELECTRIC Changeoverswitches, Contacts: 6, 32 A, front plate: 1-0-2, 45 °,..

T3-3-15098/E

018736

Y7-18736

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 32 A, front plate: 1-0-2, 45 °, maintained, flush mounting Switch Switch 6 poles 32 A Indicator plate: 1-0-2 45° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, 1-0-2, Design number 15098 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 1-0-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part T3-3-15098/E is a changeover switch designed for redirecting power between alternate sources or reversing motor circuit directions. Reverser switches of this capacity are heavily relied upon in industrial electrical panels, automated assembly lines, and heavy-duty machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
018736
Model Code
T3-3-15098/E
EAN
4015080187363
Product Length/Depth
102 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.21 kg
Certifications
IEC/EN 60947
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CSA File No.: 012528
UL Category Control No.: NLRV
UL
UL File No.: E36332
UL 60947-4-1
CSA
CE
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
