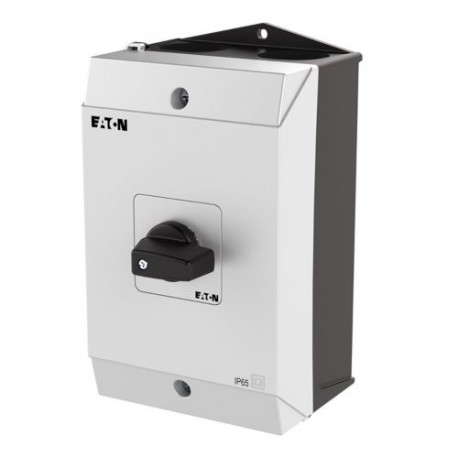

EATON - MOELLER T3-2-15907/I2 T3-2-15907/I2 290194 Y7-290194 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: AUTO-0-HAN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15907/I2 290194 Y7-290194 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: AUTO-0-HAN..

T3-2-15907/I2

290194

Y7-290194

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 32 A, front plate: AUTO-0-HAND T3-2-15907/I2 Eaton Moeller® series T3 Changeover switches, T3, 32 A, surface mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, With spring-return to MANUAL, AUTO-0-HAND Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, With spring-return to MANUAL, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: AUTO-0-HAND

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Encased changeoverswitches such as the Eaton Moeller T3-2-15907/I2 allow manual selection between multiple system states in demanding industrial environments. These enclosed rotary units facilitate safe circuit redirection for high-current loads directly on machine frames or walls.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Surface mounted device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
290194
Model Code
T3-2-15907/I2
EAN
4015082901943
Product Length/Depth
181 mm
Product Height
107 mm
Product Width
100 mm
Product Weight
0.364 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CE
UL Category Control No.: NLRV
IEC/EN 60947
UL
UL File No.: E36332
CSA
UL 60947-4-1
VDE 0660
CSA Class No.: 3211-07
IEC/EN 60947-3
IEC/EN 60204
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
