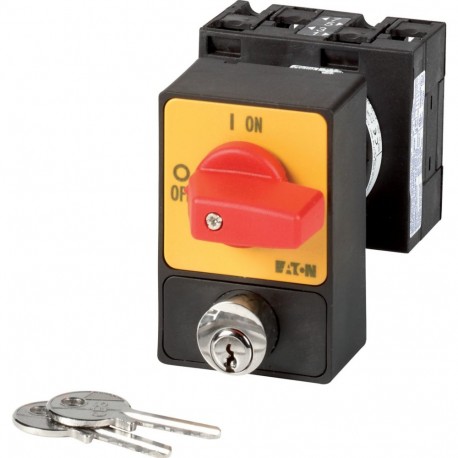

EATON - MOELLER T3-2-15907/E/SVA(C,E,G-J) T3-2-15907/E/SVA(C,E,G-J) 050985 Y7-50985 EATON ELECTRIC Changeoverswitches, 2 pole, 32 A, Cylinder lock SVA.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15907/E/SVA(C,E,G-J) 050985 Y7-50985 EATON ELECTRIC Changeoverswitches, 2 pole, 32 A, Cylinder lock SVA..

T3-2-15907/E/SVA(C,E,G-J)

050985

Y7-50985

EATON - MOELLER

1 Pcs.

Changeoverswitches, 2 pole, 32 A, Cylinder lock SVA, front plate AUTO-0-HAND Switch 4-pole switch 32 A Cylindrical lock SVA Plate Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, flush mounting, 2 pole, with black thumb grip and front plate, Cylinder lock SVA Changeover switch, Product range: Switch with locking mechanism, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, with two keys, 2 pole, Cylinder lock SVA, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary/maintained, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, Notes: If the key is withdrawn in HAND position, START can be actuated without the key, but not 0., front plate: AUTO-0-HAND

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A changeover switch redirects electrical flow between alternative circuits, making it essential for backup power systems and load-transfer applications. This Eaton Moeller T3-2-15907/E/SVA(C,E,G-J) model integrates a cylinder lock mechanism for secure operational control. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
050985
Model Code
T3-2-15907/E/SVA(C,E,G-J)
EAN
4015080509851
Product Length/Depth
136 mm
Product Height
73 mm
Product Width
61 mm
Product Weight
0.233 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
IEC/EN 60204

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
