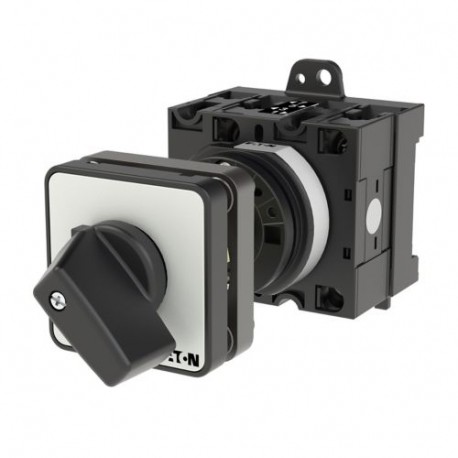

EATON - MOELLER T3-2-15542/Z T3-2-15542/Z 098821 Y7-98821 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: USV-NETZ, 90.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15542/Z 098821 Y7-98821 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: USV-NETZ, 90..

T3-2-15542/Z

098821

Y7-98821

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 32 A, front plate: USV-NETZ, 90 °, maintained, rear mounting Switch 4-pole 32 A Indicator Plate: USV-NETZ 90° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, Without 0 (Off) position, USV-NETZ, Design number 15542

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-2-15542/Z is a changeover switch utilized for source switching and power routing in critical electrical enclosures. These robust rotary devices allow technicians to toggle loads safely between primary supply lines and alternative sources such as backup generators or UPS systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T3-2-15542/Z
  • Catalogue code: 098821
  • Catalogue title: T3-2-15542/Z 098821 Y7-98821 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: USV-NETZ, 90..
  • Product description: General specifications Product Name Eaton Moeller® series T3 Changeover switch Catalog Number 098821 Model Code T3-2-15542/Z EAN 4015080988212 Product Length/Depth 133 mm Product Height 54 mm Product Width 61 mm Product
  • Manufacturer summary: Changeoverswitches, Contacts: 4, 32 A, front plate: USV-NETZ, 90 °, maintained, rear mounting Switch 4-pole 32 A Indicator Plate: USV-NETZ 90° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 2 conta

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
098821
Model Code
T3-2-15542/Z
EAN
4015080988212
Product Length/Depth
133 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.195 kg
Certifications
CE
IEC/EN 60947-3
UL 60947-4-1
VDE 0660
CSA File No.: 012528
UL File No.: E36332
UL Category Control No.: NLRV
IEC/EN 60204
CSA
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL
CSA Class No.: 3211-05
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
