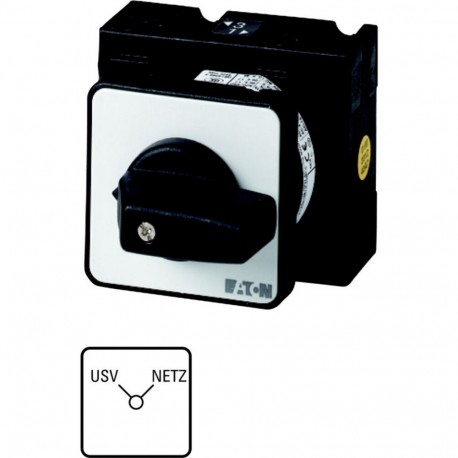

T3-2-15542/E 098826 Y7-98826 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: USV-NETZ, 90..
T3-2-15542/E
098826
Y7-98826
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller T3-2-15542/E changeoverswitch provides robust manual routing capabilities for higher-current electrical distribution and network transfer systems. Industrial applications rely on such switches to safely toggle connections between primary and backup power supplies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CSA-C22.2 No. 94
IEC/EN 60947
VDE 0660
CSA Class No.: 3211-05
UL Category Control No.: NLRV
IEC/EN 60204
UL
CE
CSA
UL 60947-4-1
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CSA File No.: 012528
