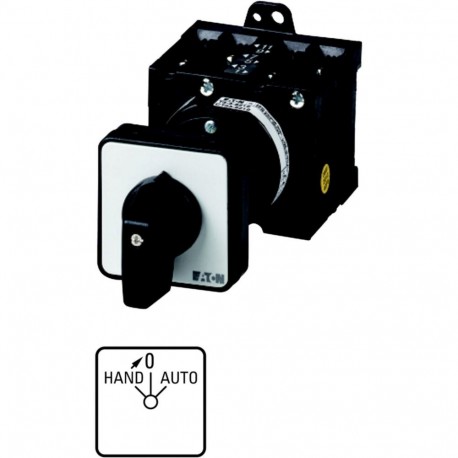

EATON - MOELLER T3-2-15435/Z T3-2-15435/Z 014406 Y7-14406 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: HAND 0-AUTO,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15435/Z 014406 Y7-14406 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: HAND 0-AUTO,..

T3-2-15435/Z

014406

Y7-14406

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 32 A, front plate: HAND>0-AUTO, 45 °, momentary/maintained, rear mounting Switch Switch; 4 poles; With return from Hand; 32 A; Indicator plate: Hand>0-AUTO; 45 °; Panel background mount Eaton Moeller® series T3 Changeover switches, T3, 32 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, With spring-return to 0, HAND>0-AUTO, Design number 15435 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, With spring-return to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: HAND>0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a versatile changeover switch, the Eaton Moeller T3-2-15435/Z routes electrical signals between multiple operating sources or automatic and manual modes. Such changeover devices are standard in control panels requiring precise switching paths and secure contact arrangements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
014406
Model Code
T3-2-15435/Z
EAN
4015080144069
Product Length/Depth
133 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.195 kg
Certifications
CSA Class No.: 3211-05
CSA File No.: 012528
IEC/EN 60204
UL
UL File No.: E36332
CSA
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
CE
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL 60947-4-1
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
