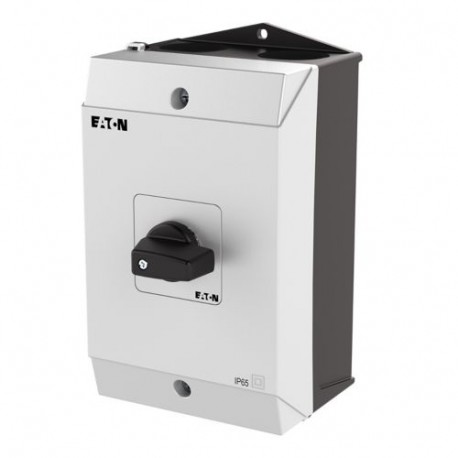

EATON - MOELLER T3-2-15435/I2 T3-2-15435/I2 222758 Y7-222758 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: HAND 0-AUT.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15435/I2 222758 Y7-222758 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: HAND 0-AUT..

T3-2-15435/I2

222758

Y7-222758

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 32 A, front plate: HAND>0-AUTO, 45 °, momentary/maintained, surface mounting T3-2-15435/I2 Eaton Moeller® series T3 Changeover switches, T3, 32 A, surface mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, With spring-return to 0, HAND>0-AUTO, Design number 15435 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, With spring-return to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: HAND>0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller enclosed changeoverswitches, such as the T3-2-15435/I2, provide secure manual source selection with spring return functionality in robust housings. These reversing switches are commonly applied to route power between hand, off, and automatic modes for heavy-duty industrial equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Surface mounted device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
222758
Model Code
T3-2-15435/I2
EAN
4015082227586
Product Length/Depth
181 mm
Product Height
107 mm
Product Width
100 mm
Product Weight
0.364 kg
Certifications
UL 60947-4-1
CE
CSA Class No.: 3211-07
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CSA File No.: 012528
UL File No.: E36332
UL Category Control No.: NLRV
VDE 0660
UL
CSA
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
