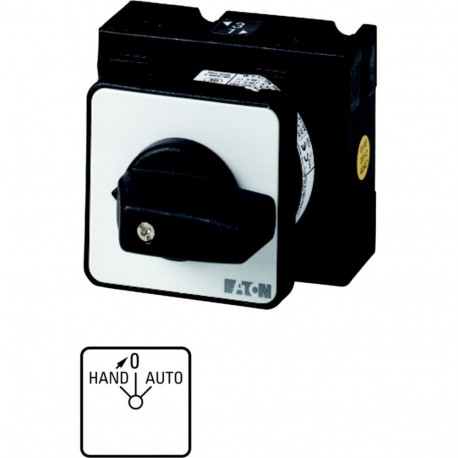

EATON - MOELLER T3-2-15435/E T3-2-15435/E 012033 Y7-12033 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: HAND 0-AUTO,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15435/E 012033 Y7-12033 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: HAND 0-AUTO,..

T3-2-15435/E

012033

Y7-12033

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 32 A, front plate: HAND>0-AUTO, 45 °, momentary/maintained, flush mounting Switch Switch. 4 poles. With return from Hand. 32 A. Plate Eaton Moeller® series T3 Changeover switches, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, With spring-return to 0, HAND>0-AUTO, Design number 15435 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, With spring-return to 0, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: HAND>0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This changeoverswitch, designated as the Eaton Moeller T3-2-15435/E, manages complex control sequences and operational overrides in heavy-duty electrical systems. Operators rely on manual rotary switches to safely redirect power feeds between automated and manual states on industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
012033
Model Code
T3-2-15435/E
EAN
4015080120339
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CSA
CE
UL File No.: E36332
UL Category Control No.: NLRV
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
CSA File No.: 012528
UL
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
