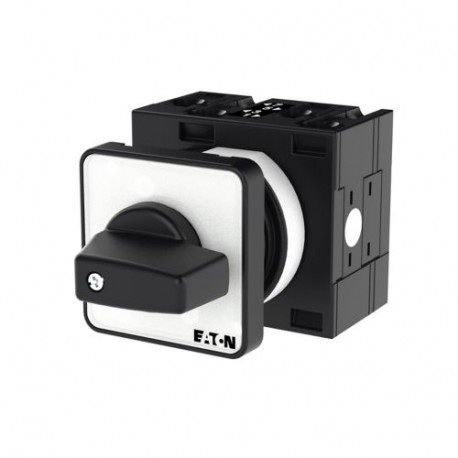

T3-2-15422/E 073730 Y7-73730 EATON ELECTRIC Changeoverswitches, Contacts: 4, 32 A, front plate: 2-0-1, 45 °,..
T3-2-15422/E
073730
Y7-73730
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Changeoverswitches such as the Eaton Moeller T3-2-15422/E are utilized in industrial control panels to manually redirect electrical currents between different circuits or sources. They provide reliable source selection for machinery, backup generators, and complex automation workflows requiring manual intervention.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): On/Off switch
- Number of poles (EF001391): 2
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CE
UL Category Control No.: NLRV
VDE 0660
UL 60947-4-1
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
CSA
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60204
CSA-C22.2 No. 94
IEC/EN 60947-3
UL
