T3-2-15414/EZ 018106 Y7-18106 EATON ELECTRIC ON-OFF switches, Contacts: 4, 32 A, front plate: STOP-START, 45..
T3-2-15414/EZ
018106
Y7-18106
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

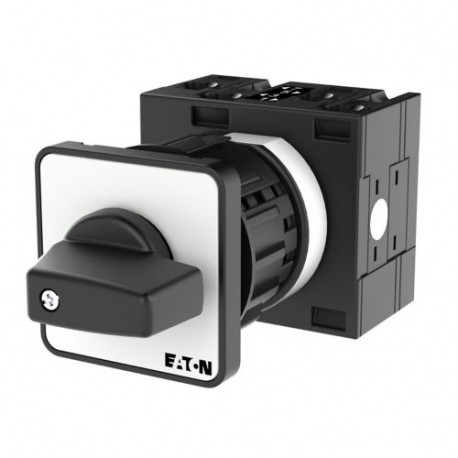

A high-capacity Eaton Moeller ON-OFF switch, designated as part number T3-2-15414/EZ, serves as a manual disconnect and power isolation device for machinery and electrical distribution systems.
Panel builders rely on these manual rotary switches to safely interrupt main power circuits during maintenance or operational shutdowns. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): On/Off switch
- Number of poles (EF001391): 4
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA
IEC/EN 60947
UL File No.: E36332
UL
IEC/EN 60204
UL 60947-4-1
CE
CSA File No.: 012528
VDE 0660
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
