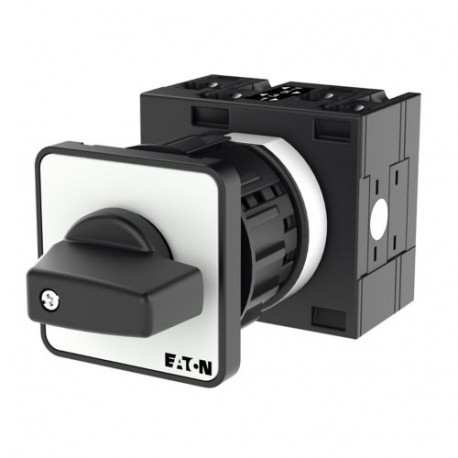

EATON - MOELLER T3-2-15403/EZ T3-2-15403/EZ 018096 Y7-18096 EATON ELECTRIC ON-OFF switches, Contacts: 3, 32 A, front plate: 0-1, 45 °, mai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15403/EZ 018096 Y7-18096 EATON ELECTRIC ON-OFF switches, Contacts: 3, 32 A, front plate: 0-1, 45 °, mai..

T3-2-15403/EZ

018096

Y7-18096

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 3, 32 A, front plate: 0-1, 45 °, maintained, centre mounting ON-OFF disconnect switch. 3 poles. 32 A. Indicator plate: 0-1. 45 Eaton Moeller® series T3 ON-OFF switches, T3, 32 A, center mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, 0-1, Design number 15403 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T3-2-15403/EZ on-off switch is a robust manual control device designed to safely open and close electrical circuits in industrial machinery and power distribution assemblies. These components ensure reliable load isolation during maintenance and routine operational shutdowns.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
018096
Model Code
T3-2-15403/EZ
EAN
4015080180968
Product Length/Depth
113 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.179 kg
Certifications
IEC/EN 60204
IEC/EN 60947
UL File No.: E36332
VDE 0660
CSA
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 94
UL Category Control No.: NLRV
CE
UL
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
