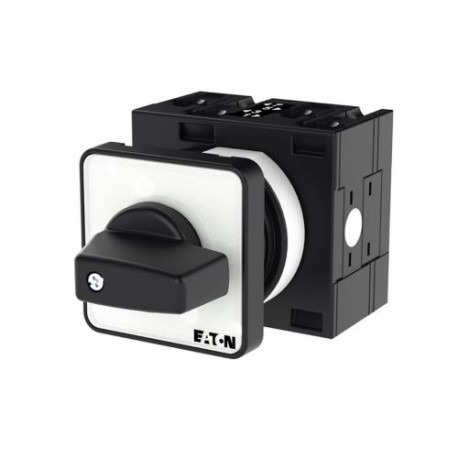

EATON - MOELLER T3-2-15403/E T3-2-15403/E 052373 Y7-52373 EATON ELECTRIC ON-OFF switches, Contacts: 3, 32 A, front plate: 0-1, 45 °, main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15403/E 052373 Y7-52373 EATON ELECTRIC ON-OFF switches, Contacts: 3, 32 A, front plate: 0-1, 45 °, main..

T3-2-15403/E

052373

Y7-52373

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 3, 32 A, front plate: 0-1, 45 °, maintained, flush mounting ON-OFF 3-pole disconnector switch 32 A Indicator plate: 0-1 45 Eaton Moeller® series T3 ON-OFF switches, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, 0-1, Design number 15403 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller ON-OFF switch (T3-2-15403/E) serves as a manual disconnect and load control device integrated into electrical distribution panels and machine enclosures. Such rotary switches provide dependable circuit isolation and power switching for industrial equipment and automated systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
052373
Model Code
T3-2-15403/E
EAN
4015080523734
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
CE
CSA
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947
UL
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CSA File No.: 012528
IEC/EN 60947-3
UL 60947-4-1
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
