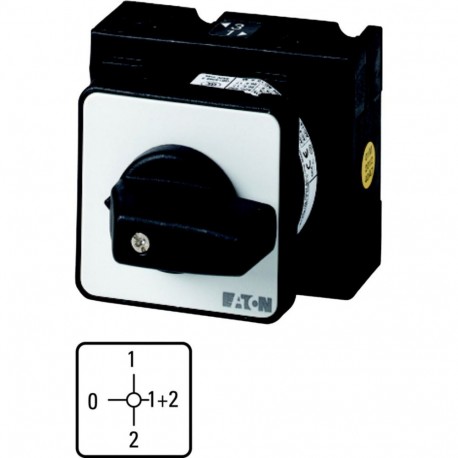

EATON - MOELLER T3-2-15114/E T3-2-15114/E 085593 Y7-85593 EATON ELECTRIC Step switches, Contacts: 4, 32 A, front plate: 0-1-1+2-2, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-15114/E 085593 Y7-85593 EATON ELECTRIC Step switches, Contacts: 4, 32 A, front plate: 0-1-1+2-2, 90 °, ..

T3-2-15114/E

085593

Y7-85593

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 4, 32 A, front plate: 0-1-1+2-2, 90 °, maintained, flush mounting Step switch 4-pole 32 A Indicator plate: 0-1-1+2-2 90 Eaton Moeller® series T3 Step switches, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, With 0 (Off) position, 0-1-1+2-2, Design number 15114 Step switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-1-1+2-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-2-15114/E step switches serve as manual control devices for directing electrical circuits in industrial machinery and automation panels. These components provide reliable switching operations to manage multi-step processes or load configurations safely.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): On/Off switch
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
085593
Model Code
T3-2-15114/E
EAN
4015080855934
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
CSA
CSA Class No.: 3211-05
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60204
CE
UL 60947-4-1
IEC/EN 60947-3
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
UL Category Control No.: NLRV
VDE 0660
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
